Kingspan Light + Air

Kingspan Light + Air skylights, smoke vents and safety screens from Logistics Lighting

Kingspan Light + Air makes the KAT dome commercial skylight, a broad line of UL-listed smoke vents, and the interior safety screens and Gladiator cages that protect the openings. Logistics Lighting distributes the Kingspan Light + Air products listed above, quotes them against your curb dimensions and code requirements, and ships direct from the factory.

What we carry from Kingspan Light + Air

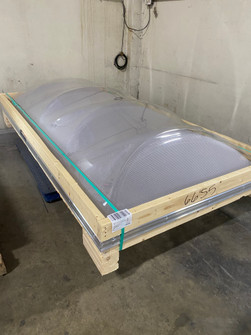

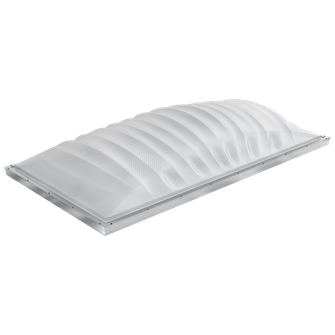

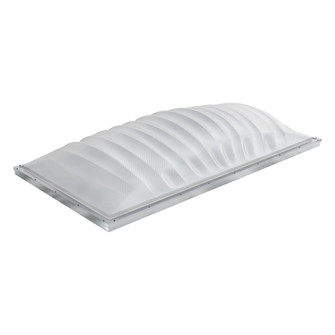

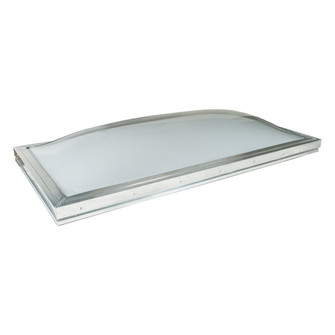

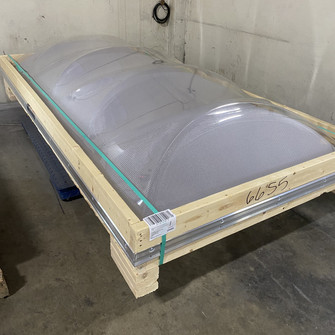

1100 Series KAT dome skylights. The 4896 KT11 and 4848 KT11 are triple glazed: white polycarbonate over white prismatic polycarbonate over a 16 mm multi-wall panel, on a thermally broken frame, for buildings where the energy code drives the skylight U-factor. The CPP versions (4896, 4848) use a clear prismatic middle layer for more light. The 4896 KS11 is the single-glazed version. The Alumilite 4689 KT12 and 4689 KT12 O16 fit the 46.25 x 89.5 inch curbs found on older industrial roofs.

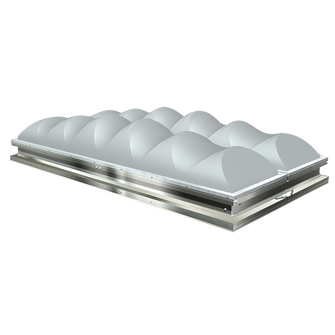

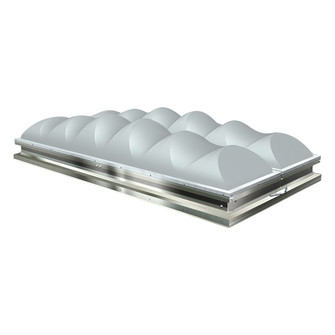

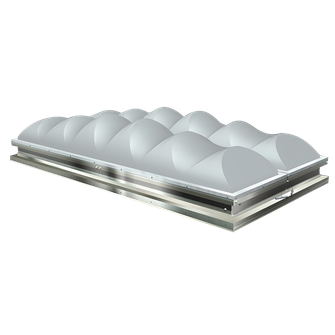

Smoke vents. The 4896 A ULSV is a UL-listed aluminum double-door vent with exterior release and a 10 lb uplift rating, in single-glazed 370 F, double-glazed 370 F, single-glazed 360 F and louvered 360 F versions. The 5596 ASLDOUL and 55102 ASLDOUL are UL-listed drop-out (melt-out) vents with no moving parts. Larger openings are covered by the 6060 SVAA bubble-dome vent and the 6072 SVAM insulated metal-lid vent with 30 lb uplift. The T4896 SSV and T4896 SSVLV are non-listed torsion-spring smoke hatches for jurisdictions that do not require a listing.

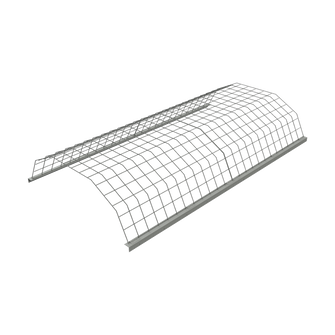

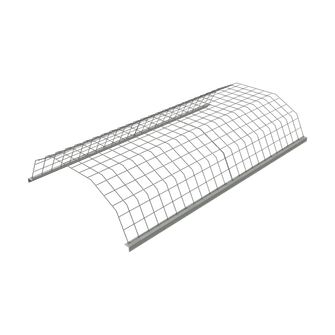

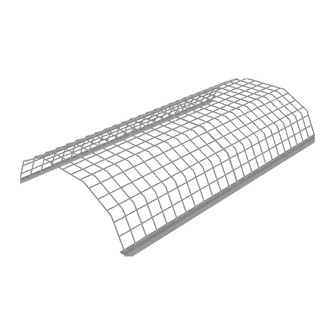

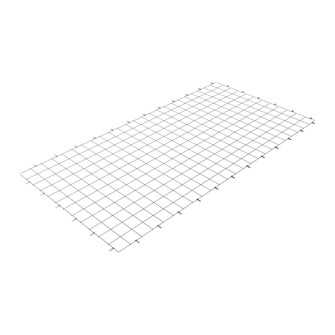

Safety screens and cages. The SSCRN interior screen is 4 x 4 inch welded galvanized wire that fastens to the curb under the skylight, in 4689, 4848, 4872, 4896, 6060, 6072 and 6096. The Gladiator cage is an exterior screen for melt-out vents and skylights, in 3648, 4896, 5596 and 55102.

Sizes and fit

Kingspan names units by curb inside dimension in inches. A 4896 KT11 has a frame inside dimension of 52.5 x 100.5 inches and sits over a curb that measures 51 x 99 outside; the ULSV vents are 52.25 x 100.25 inside. Operable Kingspan vents accept interior screens only, and the ASLDOUL melt-out vents accept exterior screens only, so tell us which vent you are protecting and we will quote the right screen.

Where Kingspan fits in our catalog

Choose Kingspan when the specification calls for triple glazing, a 4689 curb size, or a melt-out vent with a listing. For FM-rated prismatic domes on 4 x 8 curbs, compare Sunoptics; for the largest size range and Florida approvals, VELUX Commercial. Insulated curbs to match come from AES Industries and Curbs Plus.

Quoting Kingspan products

Send the skylight worksheet, smoke vent worksheet or fall protection worksheet, or call 307-633-9696. We confirm fit and the current lead time on the quote and coordinate delivery. Manufacturer data is on the skylight and smoke vent spec sheet pages, and Kingspan's warranty terms are on the warranties page.

!
