Description

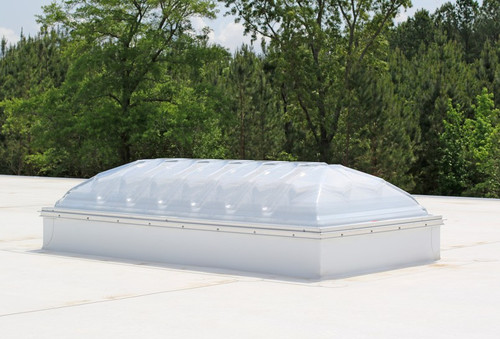

Velux Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Prismatic Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Skylight Frame Inside Dimension 28.25" x 52.25"
- Estimated Weight: 23 LBS
- Inside Frame Dimension: 28.25x52.25
- Nominal Size: 2' x 4'
- Hail Rating: 2"
- U-Factor: .73
- Visible Light Transmittance (VLT): .62
- Solar Heat Gain Coefficient (SHGC): .46
- FM Rated: Yes
- Estimated Number Per Pallet: 34
- Fabricated to fit Curb Outside Dimension: 27x51
- Glazing Layers: Double Glazed
- Glazing Type: Clear Smooth Polycarbonate over White Prismatic Polycarbonate
- Commercial Daylighting Brochure: https://store-jtdvsveqag.mybigcommerce.com/content/product_resources/Velux/CMD2%202448%20P1C2/Velux%20Commercial%20Daylighting%20Brochure.pdf
