Velux America Inc

CMD2 3636 P1C2

SKU: 1000000676

Velux America Inc

CMD2 3636 P1C2

SKU: 1000000676
Adding to quote… The item has been added

Key Specifications

Full glazing, performance, and warranty details in the specifications table below.

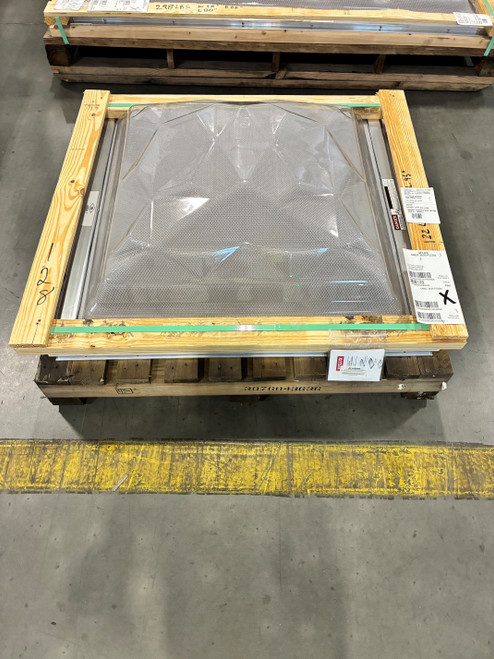

Velux Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Prismatic Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Skylight Frame Inside Dimension 40.25" x 40.25"

VELUX product drawings name this skylight the CD2 Dynamic Dome (CD2 is the mill finish frame; the neutral gray powder coat version is the CE2). It is the same skylight, listed here under its CMD2 model number.

Full Specifications

Inside Frame Dimension40.25x40.25
Nominal Size3' x 3'
Fabricated to fit Curb Outside Dimension39x39
Estimated Number Per Pallet33
Hail Rating2"
FM RatedYes
Glazing TypeClear Smooth Polycarbonate over White Prismatic Polycarbonate
Glazing LayersDouble Glazed
U-Factor.65
Solar Heat Gain Coefficient (SHGC).46
Visible Light Transmittance (VLT).62
