Description

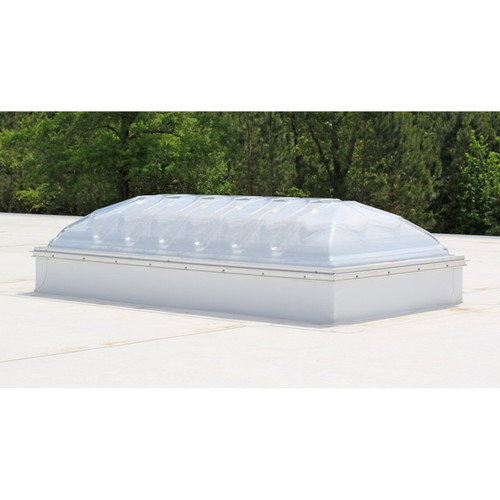

Velux Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Prismatic Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Skylight Frame Inside Dimension 64.5" x 76.5"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
- Warranty
- Videos
-
Documents
Velux Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Prismatic Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Skylight Frame Inside Dimension 64.5" x 76.5"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
Inside Frame Dimension64.5x76.5
Nominal Size5' x 6'
Fabricated to fit Curb Outside Dimension63x75
Estimated Number Per Pallet33
Estimated Number of Pallets Per 48' Flatbed8
Hail Rating2"
Glazing TypeClear Smooth Polycarbonate over White Prismatic Polycarbonate
Glazing LayersDouble Glazed
U-Factor.65
Solar Heat Gain Coefficient (SHGC).46
Visible Light Transmittance (VLT).62
