Curbs Plus, Inc.

CPM-3 36120 9H 18GA 4OC

SKU: 1000002841

Curbs Plus, Inc.

CPM-3 36120 9H 18GA 4OC

SKU: 1000002841
Adding to quote… The item has been added

Key Specifications

Full glazing, performance, and warranty details in the specifications table below.

  • Description

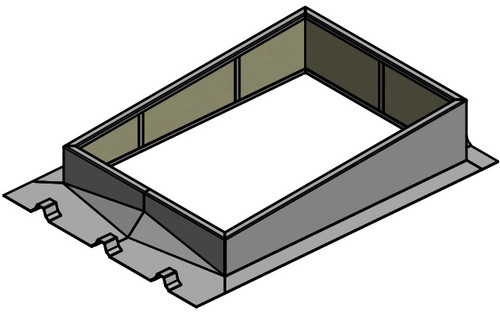

    CPM-3 36120 9H 18GA 4OC, Metal Building Curbs, 18 Gauge Galvanized Construction, Diverter on 39" side, with R panel metal rib covers, Insulated, 9“ Height, inside of walls pre-primed white. Includes 3/16” diameter, 4”x4” on center safety screen. 39“ x 123“ Outside Curb Dimension. 36” x 120” Inside Curb Dimension. Nominal Size 3' x 10'

    Also available with optional 3/16” diameter, 6”x6” on center screen, 8” on center burglar bars, 5” on center one direction burglar bars, or no safety screen.

    Also available in 12" and 14" curb height.

    Related reading: a roofer's guide to skylight installation, in our daylighting library.

    Full Specifications

  • Warranty
  • Documents

    CPM-3 36120 9H 18GA 4OC, Metal Building Curbs, 18 Gauge Galvanized Construction, Diverter on 39" side, with R panel metal rib covers, Insulated, 9“ Height, inside of walls pre-primed white. Includes 3/16” diameter, 4”x4” on center safety screen. 39“ x 123“ Outside Curb Dimension. 36” x 120” Inside Curb Dimension. Nominal Size 3' x 10'

    Also available with optional 3/16” diameter, 6”x6” on center screen, 8” on center burglar bars, 5” on center one direction burglar bars, or no safety screen.

    Also available in 12" and 14" curb height.

    Related reading: a roofer's guide to skylight installation, in our daylighting library.

    Full Specifications

    Inside Curb Dimension36x120
    Outside Curb Dimension39x123
    Nominal Size3' x 10'
    !
