Description

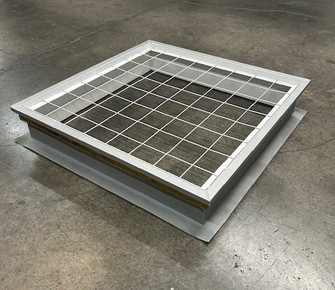

Curbs Plus, 6060 Interior Safety Screen, Z-frame construction with standard 3/16” diameter, 4”x4” screen grid. Not painted. Optional 3/16” diameter, 6”x6” screen or 5” on center burglar bars available. Mounts under the Skylight. Fabricated to fit curb inside dimension of 60" x 60"
Related reading: OSHA fall protection for skylights, in our daylighting library.
Full Specifications
- Warranty
-
Documents
Curbs Plus, 6060 Interior Safety Screen, Z-frame construction with standard 3/16” diameter, 4”x4” screen grid. Not painted. Optional 3/16” diameter, 6”x6” screen or 5” on center burglar bars available. Mounts under the Skylight. Fabricated to fit curb inside dimension of 60" x 60"
Related reading: OSHA fall protection for skylights, in our daylighting library.
Full Specifications
Inside Curb Dimension59.5x59.5
Outside Curb Dimension62.75x62.75
Nominal Size5' x 5'
Estimated Number Per Pallet35
