Key Specifications

Full glazing, performance, and warranty details in the specifications table below.

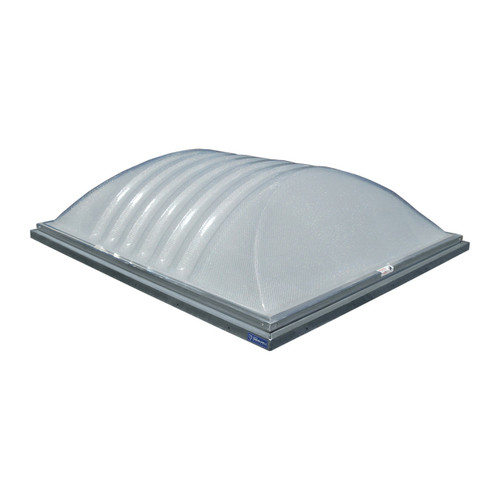

Sunoptics Signature Series Skylight, Model 4060, Curb Mount, Double Glazed, Clear Prismatic Polycarbonate over White Prismatic Polycarbonate, Thermally Broken 800MD Aluminum Frame, Mill Finish, FM Rated, Skylight Frame Inside Dimensions 51.25" x 75.25"

Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.

Full Specifications

Inside Frame Dimension51.25x75.25
Nominal Size4' x 6'
Fabricated to fit Curb Outside Dimension50x74
Estimated Number Per Pallet32
Estimated Number of Pallets Per 48' Flatbed10
Hail Rating2"
FM RatedYes
Glazing TypeClear Prismatic Polycarbonate over White Prismatic Polycarbonate
Glazing LayersDouble Glazed
U-Factor.72
Solar Heat Gain Coefficient (SHGC).48
Visible Light Transmittance (VLT).67
