Sunoptics, Inc.

SMD 5060 C2W1

SKU: 1000000372

Sunoptics, Inc.

SMD 5060 C2W1

SKU: 1000000372
Adding to quote… The item has been added

Key Specifications

Full glazing, performance, and warranty details in the specifications table below.

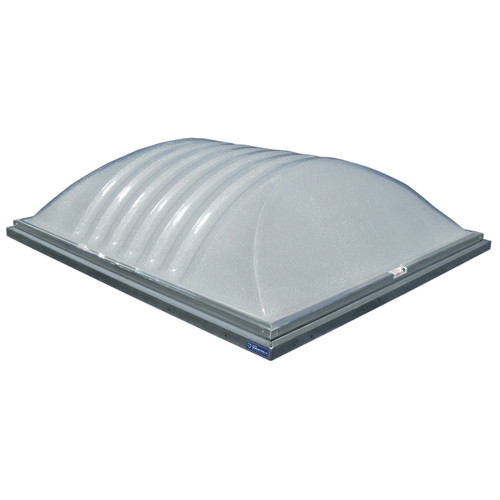

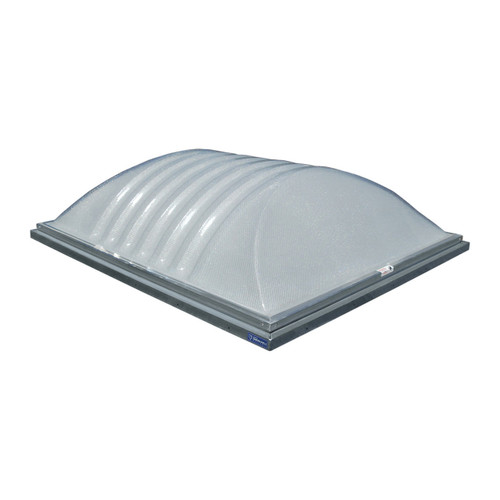

Sunoptics Signature Series Skylight, Model 5060, Curb Mount, Double Glazed, Clear Prismatic Polycarbonate over White Prismatic Polycarbonate, Thermally Broken 800MD Aluminum Frame, Mill Finish, FM Rated, Skylight Frame Inside Dimensions 63.625" x 75.625"

Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.

Full Specifications

Inside Frame Dimension63.625x75.625
Nominal Size5' x 6'
Fabricated to fit Curb Outside Dimension62.375x74.375
Estimated Number Per Pallet34
Estimated Number of Pallets Per 48' Flatbed8
Hail Rating2"
FM RatedYes
Glazing TypeClear Prismatic Polycarbonate over White Prismatic Polycarbonate
Glazing LayersDouble Glazed
U-Factor.72
Solar Heat Gain Coefficient (SHGC).48
Visible Light Transmittance (VLT).67
