Description

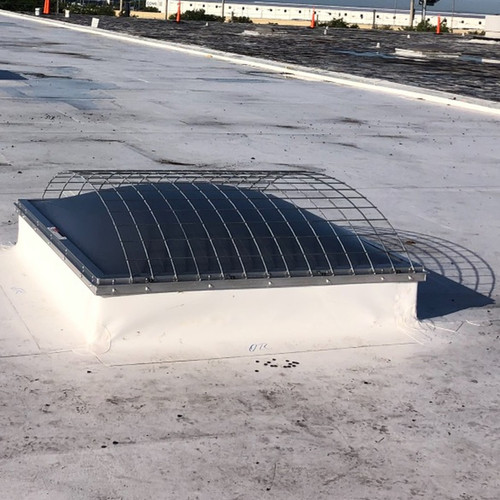

Velux Luxguard PLUS Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Hurricane Rated, Florida Approved, Skylight Frame Inside Dimension 52.5" x 52.5"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
- Warranty
- Videos
-
Documents
Velux Luxguard PLUS Dynamic Dome Skylight, LuxGuard Double Dome Model, Curb Mount, Double glazed, Clear Smooth UV Guard Polycarbonate over White Polycarbonate, Thermally Broken Aluminum Frame, Mill Finish, FM Approved, Hurricane Rated, Florida Approved, Skylight Frame Inside Dimension 52.5" x 52.5"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
Inside Frame Dimension52.5x52.5
Nominal Size4' x 4'
Fabricated to fit Curb Outside Dimension51x51
Estimated Number Per Pallet35
Estimated Number of Pallets Per 48' Flatbed10
Hail Rating2"
Glazing TypeClear Smooth Polycarbonate over White Polycarbonate
Glazing LayersDouble Glazed
U-Factor.65
Solar Heat Gain Coefficient (SHGC).46
Visible Light Transmittance (VLT).66
