Description

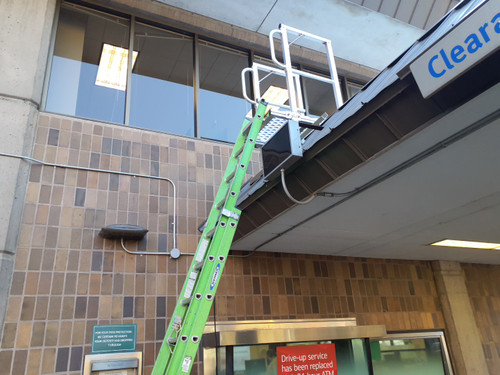

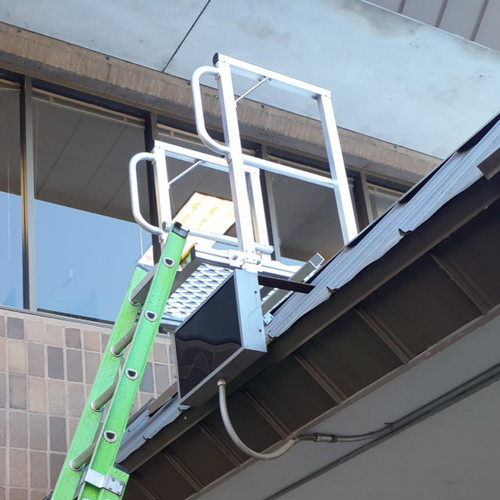

The Kattsafe KD001 is an aluminum landing platform that gives portable ladders a secure, designated place to land at the roof edge. The ladder support bracket holds the ladder base against sideways movement and slip, and the platform's self-closing gate puts distance between the worker and the leading edge as they step onto the roof. It is the answer for buildings that are accessed by extension ladder rather than a fixed ladder. Logistics Lighting quotes the KD001 with the membrane attachment points it needs and ships direct from Kattsafe.
Key features of the KD001
- Secure ladder attachment. High-strength stainless steel support bracket prevents sideways movement and base slip.
- Self-closing gate on the platform so the opening in the guardrail closes behind the climber.
- Membrane-friendly mounting. Fastened through KP0001 attachment points supplied with PVC, TPO or EPDM membrane to match the roof, approved by the major membrane manufacturers.
- Aluminum construction. High-strength aluminum platform, mill finish, with stainless fixings.
- OSHA compliant designated roof access point.
Specifications
- Platform: aluminum extrusion frame with ribbed walking surface; gate GW390A adjustable self-closing; grab rails, handrail, mid rail and knee rail included
- Ladder support: LD429LB bolt-on ladder support bracket, stainless steel
- Mounting: four KP0001 attachment points per platform, specified as PVC, TPO or EPDM; specify membrane manufacturer and color when ordering
- Option: LD404 ladder support bracket tie-off cable
- Finish: mill aluminum; powder coat available
Where the KD001 fits
If the roof is reached by a fixed ladder instead, the RL20 angled and RL30 vertical ladders with parapet or walkway platforms are the permanent solution, and the GRLP ladder protector controls access to them. Roof-edge guardrail to run from the platform is the KattGuard GR34. Everything is on the roof access and fall protection page.
Frequently asked questions
Why not just tie the ladder to the gutter? OSHA 1910.23 requires portable ladders to be secured against displacement; a fixed landing platform with a support bracket does that every time without relying on the crew.
Does it penetrate the roof? The attachment points are heat-welded or adhered to the membrane by the roofer using matching membrane, which is why the membrane type has to be specified.
Can it connect to a guardrail run? Yes. The KP0001 attachment points also serve GR34 guardrail and walkway systems.
How to get a quote
Send the ladder worksheet or call 307-633-9696 with the roof membrane type and manufacturer, the parapet height if any, and the ladder that will be used. We confirm the configuration and current lead time on the quote. The cut sheet, data sheet and installation manual are in the Documents tab.
Related reading: OSHA fall protection for skylights, in our daylighting library.
