Description

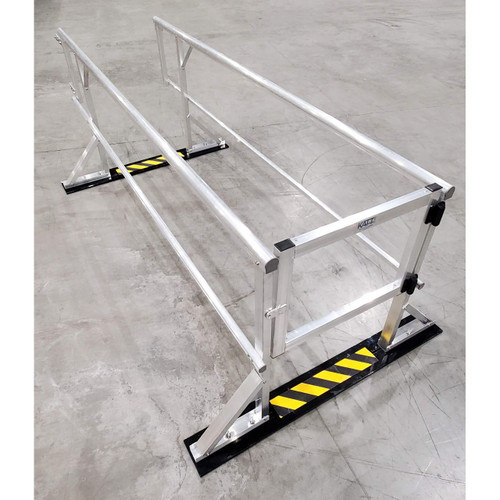

The Kattsafe GRLP.0010 is a 10 foot aluminum ladder protector: a lockable guardrail enclosure with a self-closing gate that sits at the top of a fixed vertical ladder. It keeps the climber an OSHA-compliant distance from the unprotected roof edge as they step off the ladder, and it controls who can use the ladder. The design is non-penetrating on weighted plates, and the GWLCK connection kit brackets attach it to any Kattsafe ladder or to an existing fixed ladder. Logistics Lighting quotes the GRLP with the ladder and ships direct from Kattsafe.
Key features of the GRLP ladder protector
- Assembles in minutes and ships boxed with the GW390A adjustable self-closing gate.
- Connects to any vertical fixed ladder with the included ladder connection brackets.
- Non-penetrating. Posts weld to 3/8 inch powder-coated steel plates that sit on the roof.
- Controlled access. The gate can be locked so unauthorized people cannot climb an exterior ladder.
- Made in the USA, in stock and ready to ship; mill finish standard with a yellow option.
- OSHA compliant passive fall protection at the ladder landing.
Specifications
- Kit GRLP.0010: 10 ft mill-finish aluminum ladder protector with gate and ladder connection brackets
- Handrail: 2 in round 6005-T5 aluminum tube; knee rail: 1-5/8 in round tube; rail height 42 in
- Base plates: 3/8 in thick powder-coated steel; posts welded to plate
- Hardware: stainless steel U-bolts, carriage bolts and self-tapping screws
- Related kits: GRLP.0010Y 10 ft yellow, GRLP.0015 15 ft mill, GRLP.0015Y 15 ft yellow
Where the GRLP fits
The ladder protector completes a Kattsafe fixed ladder such as the RL30 or RL40, giving the landing the guardrail OSHA 1910.28 expects. From the protector, a run of KattGuard GR34 guardrail can continue along the roof edge. For buildings accessed by portable ladder, the KD001 landing platform does the same job. All roof access products are on the roof access and fall protection page.
Frequently asked questions
Does it fit ladders from other manufacturers? Yes. The connection brackets attach to any vertical fixed ladder.
Is the roof penetrated? No. The base plates rest on the roof; membrane protection under the plates is recommended.
Which length do I need? The 10 foot kit suits most single-ladder landings; use the 15 foot kit where the landing is wider or equipment sits close to the ladder.
How to get a quote
Send the ladder worksheet or call 307-633-9696 with the ladder it will attach to, the roof membrane and the finish you want. We confirm the current lead time on the quote. The cut sheet, product sheet and installation manual are in the Documents tab.
Related reading: OSHA fall protection for skylights, in our daylighting library.
