KATTGUARD GR34 FREESTANDING ALUMINUM 12' GUARDRAIL

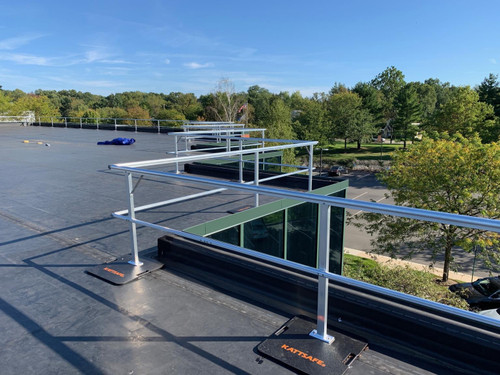

The Kattsafe KattGuard GR34 is a freestanding, non-penetrating guardrail for membrane and built-up roofs. Plastic-coated steel weighted bases sit on the roof surface, so the system protects a roof edge, a skylight bank or a rooftop equipment area without a single fastener through the membrane. This 12 foot kit is the starting unit: it ships with the rail sections, two 5 foot returns, base pads, the installation tool kit and manual, and it extends with additional sections and corner kits. Logistics Lighting quotes GR34 by the run length and ships direct from Kattsafe.

Key features of the GR34

• Non-penetrating. Weighted bases on recycled rubber protection pads; the roofing warranty is untouched.
• OSHA compliant. Top rail engineered to meet and exceed the 200 lb load in any direction per 29 CFR 1926.502 and 1910.29, at a 42 inch installed height.
• Modular. Straight runs, corners, returns, wall terminations and ladder connections are all kit items, and sections can be cut on site.
• Aluminum with stainless hardware. 6005-T5 extruded rails and posts, die-cast corner elbows, all stainless steel fasteners.
• Finish options. Mill finish standard, safety yellow in stock, custom colors available.
• Warranty. Five years on the system, two years on the weighted bases.

Specifications

• Kit: 12 ft run with two 5 ft 90 degree returns, weighted bases, EPDM base pads, tool kit and manual
• Top rail: 2 in extruded 6005-T5 aluminum tube, 0.75 lb/ft; mid rail: 1-5/8 in, 0.40 lb/ft
• Post: 2-1/4 x 1-1/2 x 1/8 in extruded rectangular tube, 2.70 lb
• Base: 5/8 in thick plastic-coated steel with pre-tapped post holes; 24 x 24 x 5/32 in rubber pad under each base
• Height: 42 in; top rail to mid rail no more than 19 in
• Post spacing: 10 ft maximum (8 ft in some states); bases at least 24 in from the roof edge unless there is a parapet
• Optional toe board: 4-1/4 x 1 x 3/32 in aluminum channel

Where the GR34 fits

Use GR34 where a permanent guardrail is needed but the roof cannot be penetrated: around a group of skylights or smoke vents, along a roof edge near equipment that needs regular service, or at a ladder landing. For the hatch itself, the clamp-on KG hatch guardrail is the matching product; for skylights, the safety screens on the roof access and fall protection page cover the opening directly. Kattsafe's RL30 and RL20 ladders connect to GR34 with a ladder connection kit.

Frequently asked questions

How long a run can one kit make? This kit covers 12 feet of protected edge plus the two returns. Longer runs add rail sections and bases at 10 foot centers.

Do I always need the returns? Yes. Kattsafe requires a 90 degree return at each end of any freestanding run regardless of length.

Is it heavy to place? The bases carry the weight of the system; the aluminum rails are light. Kattsafe recommends a competent installer follow the manual for base placement.

How to get a quote

Send the fall protection worksheet or call 307-633-9696 with the length of edge to protect, the number of corners, and the roof membrane. We confirm the kit list and current lead time on the quote. The drawing, product sheet, specification and installation manual are in the Documents tab.
