Sunoptics, Inc.

SMD 4080 C2W1

SKU: 1000000369

Sunoptics, Inc.

SMD 4080 C2W1

SKU: 1000000369
Adding to quote… The item has been added

Key Specifications

Full glazing, performance, and warranty details in the specifications table below.

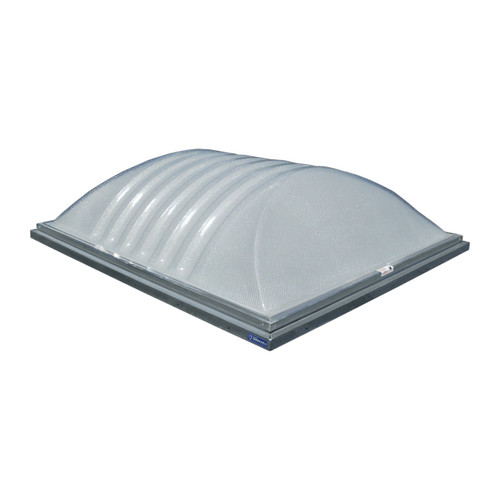

Sunoptics Signature Series Skylight, Model 4080, Curb Mount, Double Glazed, Clear Prismatic Polycarbonate over White Prismatic Polycarbonate, Thermally Broken 800MD Aluminum Frame, Mill Finish, FM Rated, Skylight Frame Inside Dimensions 52.25" x 100.25"

Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.

Full Specifications

Inside Frame Dimension52.25x100.25
Nominal Size4' x 8'
Fabricated to fit Curb Outside Dimension51x99
Estimated Number Per Pallet36
Estimated Number of Pallets Per 48' Flatbed10
Hail Rating2"
FM RatedYes
Glazing TypeClear Prismatic Polycarbonate over White Prismatic Polycarbonate
Glazing LayersDouble Glazed
U-Factor.72
Solar Heat Gain Coefficient (SHGC).48
Visible Light Transmittance (VLT).67
