Description
Sunoptics Signature Series Skylight, Model 4080, Curb Mount, Single Glazed, White Prismatic Polycarbonate (CC1P125), 805SC Frame, 1 Blade Continuous Vent, Mill Finish, Skylight Frame Inside Dimension 52.25" x 100.25"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
- Warranty
- Videos
-

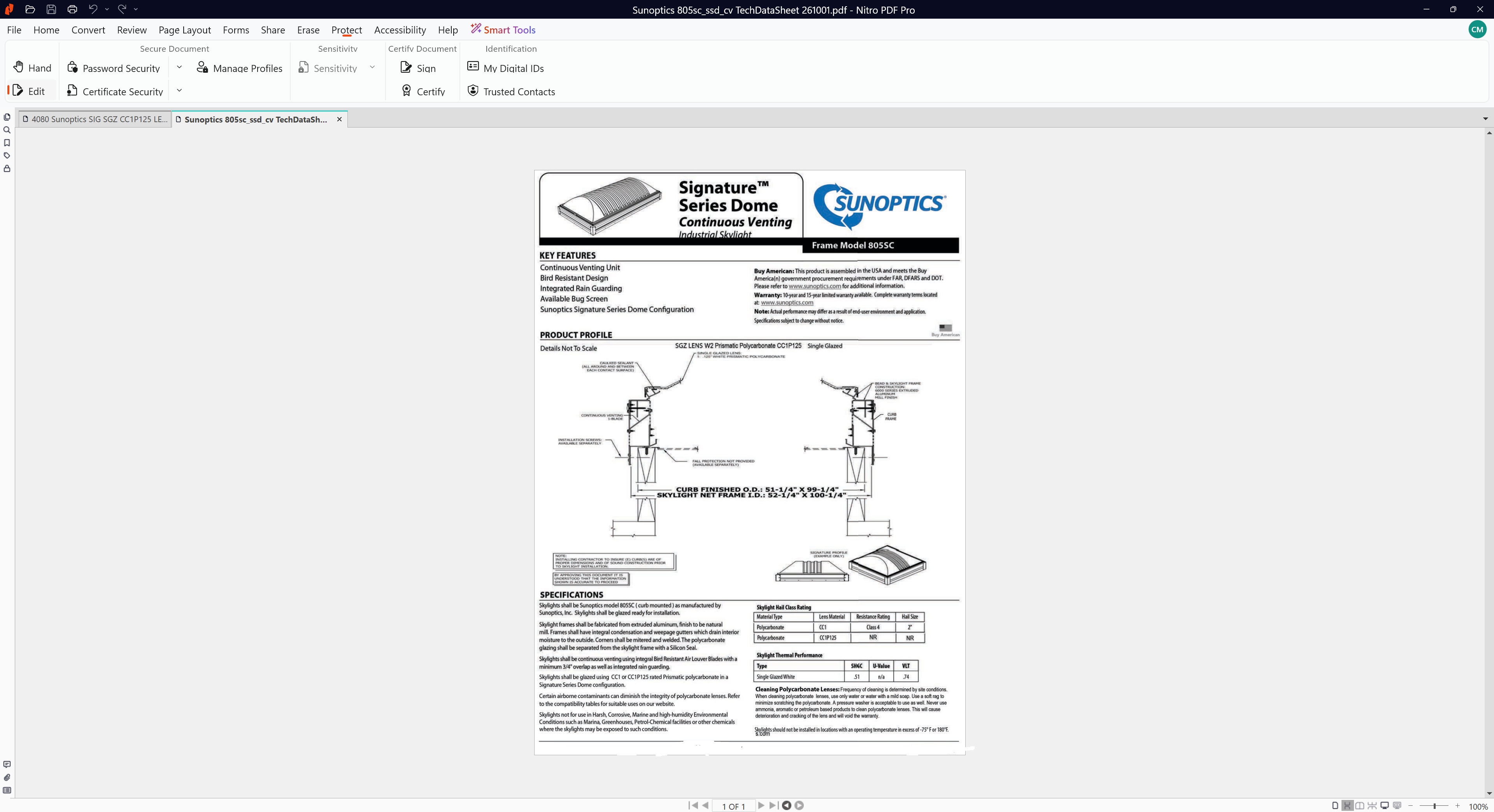

Documents
Sunoptics Signature Series Skylight, Model 4080, Curb Mount, Single Glazed, White Prismatic Polycarbonate (CC1P125), 805SC Frame, 1 Blade Continuous Vent, Mill Finish, Skylight Frame Inside Dimension 52.25" x 100.25"
Research behind this product: the U.S. Department of Energy's study of commercial building toplighting, in our daylighting library.
Full Specifications
Inside Frame Dimension52.25x100.25
Nominal Size4' x 8'
Fabricated to fit Curb Outside Dimension51x99

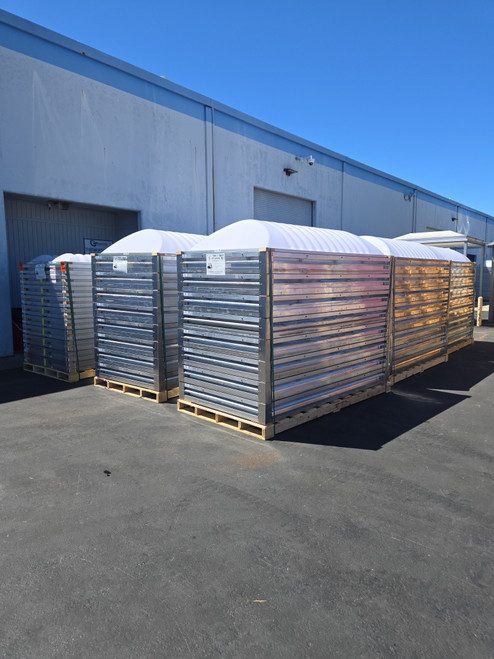

Estimated Number Per Pallet8
Estimated Number of Pallets Per 48' Flatbed10
Hail Rating2"
Glazing TypeWhite Prismatic Polycarbonate
Glazing LayersSingle Glazed
U-Factor.70
Solar Heat Gain Coefficient (SHGC).68
Visible Light Transmittance (VLT).74
